Description of the material - Solar hot water panel

1x
copper tube
1x
A4 size picture frame with glass
1x
5 dl PET bottle with a large cap,
9x
M4x40 screws
1x
strong copper wire (or wire that does not rust).
1x
1 small flexible tube
1x

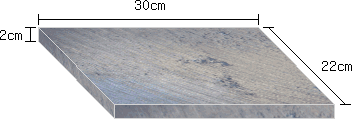

piece of a 2 cm thick polyurethane insulation covered with an aluminium foil
2x
2 cm strips of thick polyurethane insulation covered with an aluminium foil
2x
small strips of a 2 cm thick polyurethane insulation covered with an aluminium foil
1x
black fabric adhesive tape
1x
high temperature paint spray
1x
universal glue

copper tube

Hornbach DIY shop or Metallica
http://http://www.metallica.ch/opus/
Price	3 CHF (for 1 metre)

DIY shops
Price	3 CHF (room)
While this may seem absurd, the cost of the frame and its glass is lower that if the glass was cut by a glazier (who would have to work also the edges to make them not too sharp). Choose the white not anti-glare glass!

Gétaz Romang
http://http://www.getaz-romang.ch/
Price	200 CHF (package of 20 boards)
Swisspor Pur Alu insulation Board. The Panel consists of a synthetic foam with aluminium foil glued on both sides . Other polyurethane insulation panels sold in DIY shops can be used instead (e.g. polyfoam in Jumbo, 8.95 Frs for a board of 1.20 x 62 cm). In this case, place a metal sheet on top of the board (ideally copper) to transfer the heat to the tube and also avoid the paint to 'melt' the synthetic foam.
